$5,944.00

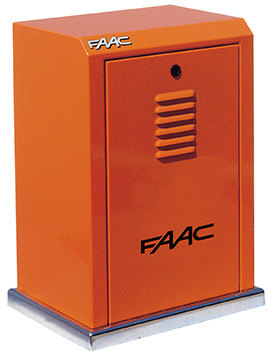

1 x 109885 – FAAC 884 MC 3PH Gearmotor 3PHASE 400V (SPECIAL ORDER ONLY)
• Oil-bath operator with maximum weight of 3500kg
• Adjustable twin-disk clutch for safety
• Built-in 884T control board with Roller limit switch
• Z28 pinion = speed of 18m/min
• 100% duty cycle (<2000kg) 50% (>2000kg)
• Max Gate Length of 42m
• Optional foundation plate with adjustments
1 x 109885 – FAAC 884 MC 3PH Gearmotor 3PHASE 400V (SPECIAL ORDER ONLY)
• Oil-bath operator with maximum weight of 3500kg
• Adjustable twin-disk clutch for safety
• Built-in 884T control board with Roller limit switch
• Z28 pinion = speed of 18m/min
• 100% duty cycle (<2000kg) 50% (>2000kg)
• Max Gate Length of 42m
• Optional foundation plate with adjustments
1 x 109885 - FAAC 884 MC 3PH Gearmotor 3PHASE 400V (SPECIAL ORDER ONLY) • Oil-bath operator with maximum weight of 3500kg • Adjustable twin-disk clutch for safety • Built-in 884T control board with Roller limit switch • Z28 pinion = speed of 18m/min • 100% duty cycle (<2000kg) 50% (>2000kg) • Max Gate Length of 42m • Optional foundation plate with adjustments
1 x 844-CHAINKIT - FAAC 844 CHAIN CONVERSION KIT (for chain applications) • Oil-bath operator with maximum weight of 1800kg • Maximum safety with twin-disk clutch and encoder • Built-in 780D control board with magnetic limits • Chain conversion kit with Idler Gears & Flange • Z20 Chain Pinion • Optional 8B Chain Available
1 x 719130 - FAAC Z20 pinion (* increases speed to 12m/min)
1 x 109838 - FAAC 844 R Gearmotor 240V • Oil-bath operator with maximum weight of 1800kg • Adjustable twin-disk clutch for safety • Magnetic limits • No control board included • No pinion included • Optional foundation plate with adjustments
1 x 719167 - FAAC Z20 pinion (* increases speed to 12m/min)
1 x 109837 - FAAC 844 ER Z16 Gearmotor • Oil-bath operator with maximum weight of 1800kg • Maximum safety with twin-disk clutch and encoder • Built-in 780D control board with magnetic limits • Z16 pinion = speed of 9.6m/min • 70% duty cycle • Max Gate Length of 40m • Optional foundation plate with adjustments • Optional larger pinions available to increase speed
1 x 109776 - FAAC 746 Gearmotor • Oil-bath operator with maximum weight of 600kg • Maximum safety with twin-disk clutch and encoder • Built-in 780D control board with magnetic limits • Z16 pinion = speed of 9.6m/min • 70% duty cycle • Optional foundation plate with adjustments
